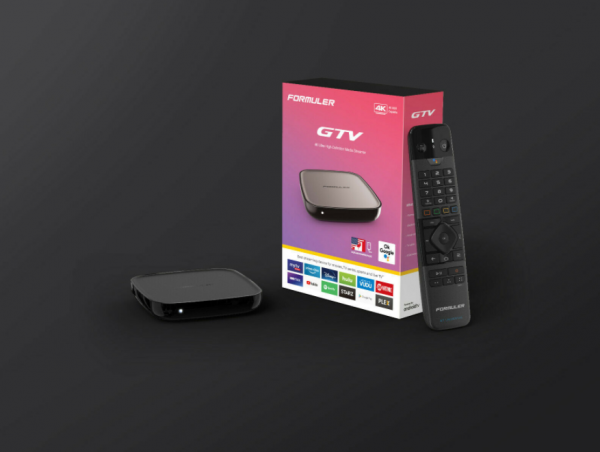

GTV box

Description

Detail information

4K IPTV receiver
H.264, H.265/HEVC(Main/Main 10 profile@level 5.1 high-tier) / MPEG4 – UHD,HD,SD
Maximum 4K x 2K@60 fps 10-bit VP9 decoding
Supported HDR 10
Quad core 1.6GHz
Powerful Compatibility through Embedded Android OS (Pie 9.0)
Recording & Playback or External USB 3.0/2.0 Devices
Recording and Time Shifting Simultaneously
Event Recording by EPG
Supported USB DVB-T2 /T/C Tuner Dongle & HDMI 2.0a
10/100/1000(Gigabit) Base Ethernet port
Ultra low power
Google Android TV official certification
Google Live Channels (support ATSC usb tuner)
Use Google Android TV Play Store (Amazon Prime and Disney + available)Google Play Music, Movies & TV,Game
Provide High quality OTT dedicated Media player (Timeshift, Adative Streaming)
Youtube TV and Google Asistant support
Use various OTT-only applications
Under 0.5W Standby Power Consumption
HDCP 1.4,2.2
DRM (Widevine L1 , Playready)

Specifications

A/V Decoding
Video Decoding H.265/HEVC MP-10@level 5.1 up to 4Kx2K@60fps
VP9 Profile-2 up to 4Kx2K@60fps
H.264/AVC HP@level 5.1 up to 4Kx2K@30fps,
H.264 MVC up to 1080p@60fps
AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to 1080p@60fps
WMV/VC-1 SP/MP/AP up to 1080p@60fps
Image Decoding MJPEG and JPEG unlimited pixel resolution decoding
Support JPEG thumbnail,scaling,rotation and transition effects.
Video Formats 4:3 Letter Box, 4:3 PanScan, 16 : 9
Video Resolution Dynamic HDR and HDCP2.2,4Kx2K@60 max resolution output
Support 480i/p,576i/p,720p,1080i/p and 4Kx2K
Audio Decoding DTS,Dolby Digital Plus, MPEG-1 Layer 1,2
AAC-LC and HE AAC V1/V2 decoding
Audio Mode Streo/Joint stereo/Mono, Dolby AC-3
Sampling Rate 8khz to 192khz sampling rate

Main System
Main Processor Amlogic chipset(S905X2)
Memory eMMC : 16 GBytes
SDRAM : 2 GBytes (DDR4)
OS Android 9.0
Audio / Video & Data IN/OUT
HDMI Video & Audio Output(max. 4Kx2K@60 fps)
USB USB3.0 (For Update), USB2.0
ETHERNET 10BASE-Te/100BASE-TX/1000BASE-T IEEE802.3 compliant

IR Extention Removable IR extension
WiFi Dual Band/IEEE Std.802.11a/b/g/n/ac(2Tx2R) ,2.4G /5G
Bluetooth 2.1/3.0/4.0/4.2/5.0
Front Panel
Indicators 1 Dual Color LED(Standby, Remote)

Power Supply
Input Voltage AC 100 ~ 240V, 50/60Hz
Type 12V 1A Adaptor
Power Consumption Max. 12W
Standby Power Max. <0.5W
Protection Separate Internal Fuse & Lighting protection

Physical Specification
Size (W x D x H) 109 x 109 x 21mm
Operating Temp. 0°C ~ +45°C
